EOC

Products » Ventilation » EOC

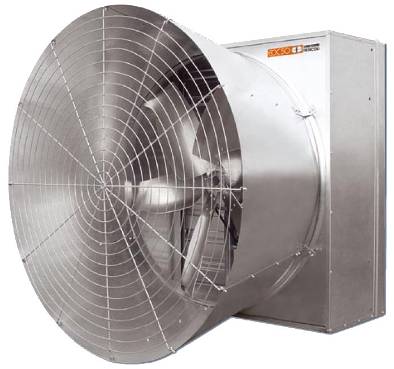

Exhaust fan with cone and shutter

EOC fan range offer a high energy efficiency, saving up to 20% in consumption.

FEATURES

  • Fan equipped with diffusion cone and automatic shutters. Removable shutters for easy maintenance / inspection.
  • Galvanized steel body, aluminium alloy shutters and blades that provide adequate protection even in aggressive environments.
  • Air shifting from 38500 a 50200 m3/h.
  • Suitable for installing in a wall and ideal for exhausting ventilation.
  • Reduced energy consumption and high air flow thanks to the cone effect.
  • Available in 3 and 6 blades. (3 blades in aluminium only)

TECHNICAL DATA

Fan Model

EOC

53s/1
(6 blades)

53s/1.5
 (6 blades)

53s/1
(3 blades)

56/1.5
 (6 blades)

56/1.5
 (3 blades)

Nominal flow at 0 mm WG

m³/h

38400

44500

42000

47600

50200

Propeller speed

n/min

369

433

447

433

481

Diameter -D-

mm/in

1346/53

1346/53

1346/53

1422/56

1422/56

Motor power (*)

HP/kW

1.00/0.75

1.50/1.10

1.00/0.75

1.50/1.10

1.50/1.10

Power supply

V

230/400
3~

230/400
3~

230/400
3~

230/400
3~

230/400
3~

Noise level Lpa

dB

70,7 – 65,3

72.1-75.6

Weight (model STD)

Kg.

98 – 89

109-112

(*) Motors with other voltage, monophasic motors or variable speed motors through autotransformers are available under request.

MOTORS

  • Standard asynchronous triphasic motor.
  • VAR, asynchronous motor triphasic variable by autotransformer.
  • MON, monophasic motor. Variable speed.

BLADES

Materials of the blades:

  • GALV: Galvanized steel.
  • ALU: Aluminium alloy (recommended version by its lightness and resistance).

INOX: Stainless steel AISI 304.

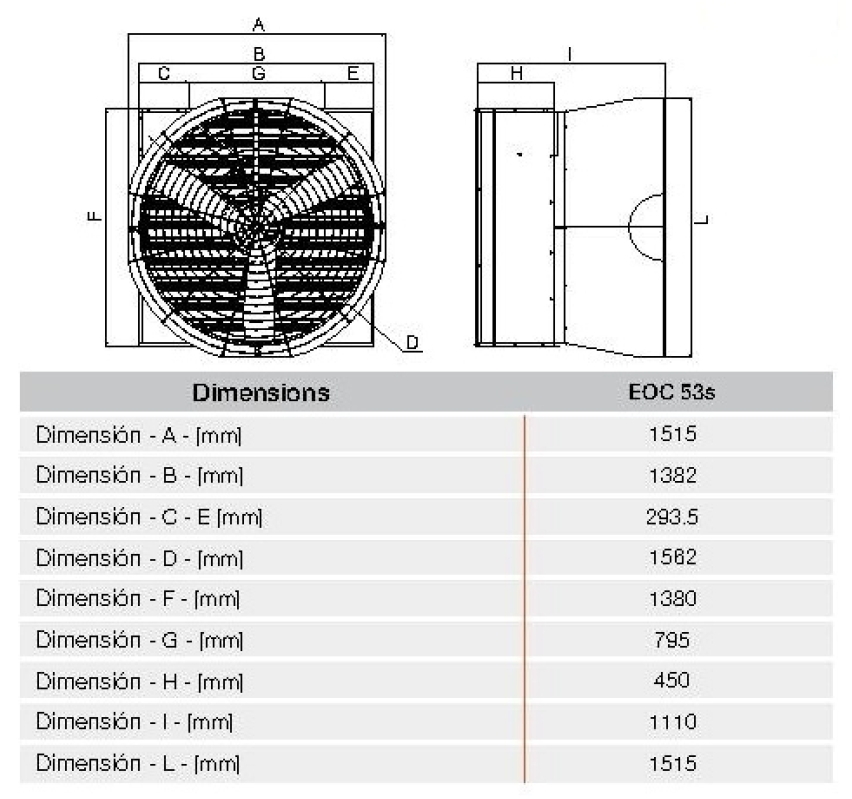

MEASURES

  • Dimensions:
